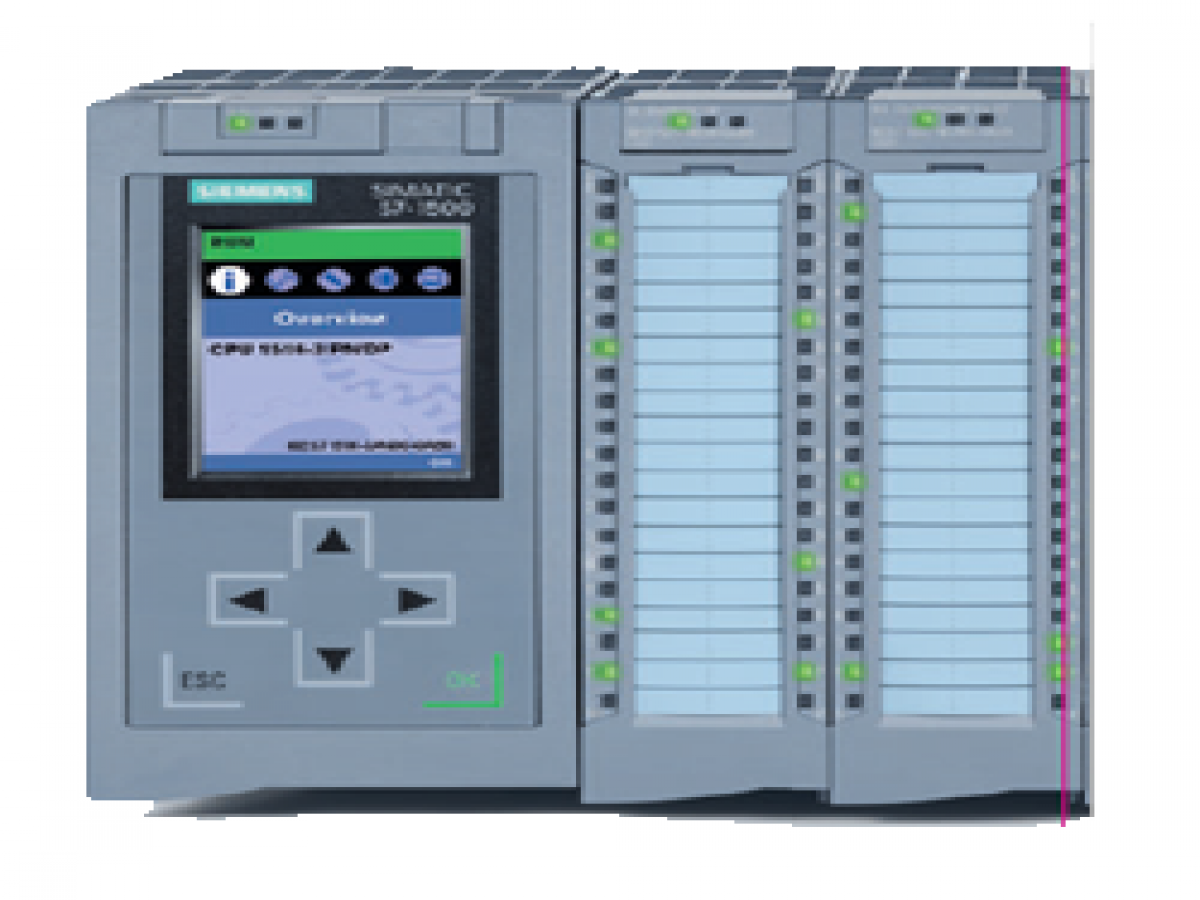

SIMATIC S7-1500

Increase productivity with the ultimate power: SIMATIC S7-1500

The Advanced Controller SIMATIC S7-1500 can be used in the entire automation industry in applications that are medium-sized to high-end machines with high demands on performance, communication, flexibility and technological features.

Within the SIMATIC S7-1500 Portfolio, there are various CPU types for multiple performance classes available.

Besides the standard CPUs and the compact CPUs, the Portfolio will be enlarged by the
S7-1500 T-CPU and CPU 1518 ODK.
The technology-CPUs are offering a wide range of motion control function such as cam disks and constant velocity as well as the possibility to execute C/C++ code on the CPU 1518 ODK.

System overview

Through its many innovations, the new SIMATIC S7-1500 controller sets new standards for maximized productivity.

Central processing units

The central processing units (CPUs) are the heart of the SIMATIC S7-1500. They execute the user program and network the controller with other automation components...

Signal modules

The signal modules or I/O modules provide the interface between the controller and the process.

System overview

Central processing units

Signal modules

Technology modules

Technology modules (TM) offer hardware-level signal processing for rapid counting, measurement and position registration for a variety of encoders.

Communication

Interfaces for communication via PROFINET and in part PROFIBUS DP as well are already integrated in the S7-1500 CPUs. Communication modules increase the communication capabilities of the S7-1500...
